Description
Electrical Specs
Physical Specs
Power Handling: 125W-300W Watts RMS
4 or 8 Ohms
Carbon fiber cone
Neodymium motor
Spring loaded terminals
Sold Individually
Neo motors and carbon fiber cones – there’s nothing better! Made specifically for car audio PA systems, we chose a carbon-fiber cone to handle high SPL systems without breakup, then joined it with a vented, high strength neodymium motor to deliver amazing volume and clarity.
Specifications

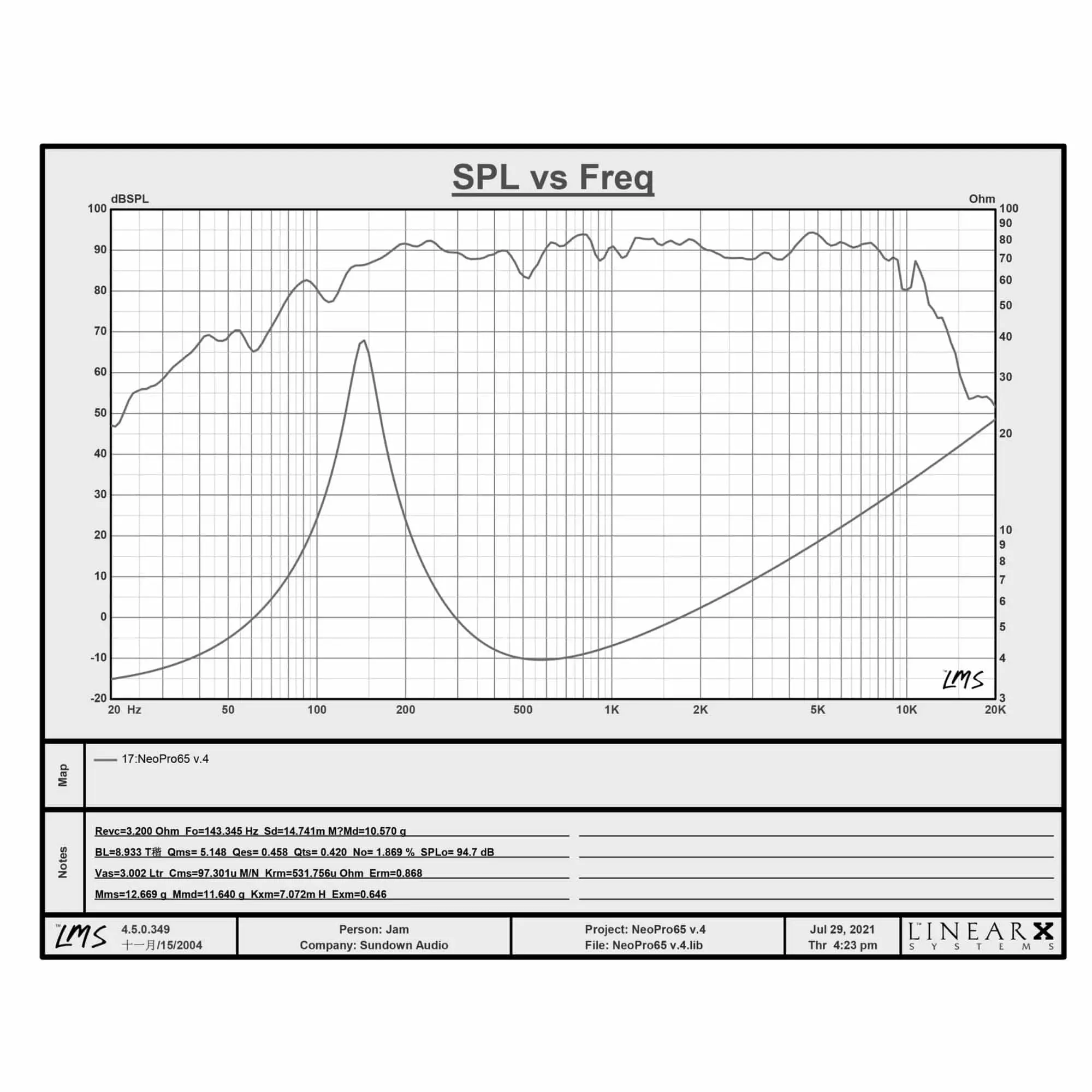

T/S SPECS NEOPRO V.4 6.5″
RE (Ohms) 3.200
FS (Hz) 143.345
VAS (L) 3.002
Qes 0.458
Qms 5.148
Qts 0.420
BL (NA) 8.933
Mms (Grams) 12.669
Cms (uM/N) 97.301
Sens (dB @ 1w/1m)
94.7

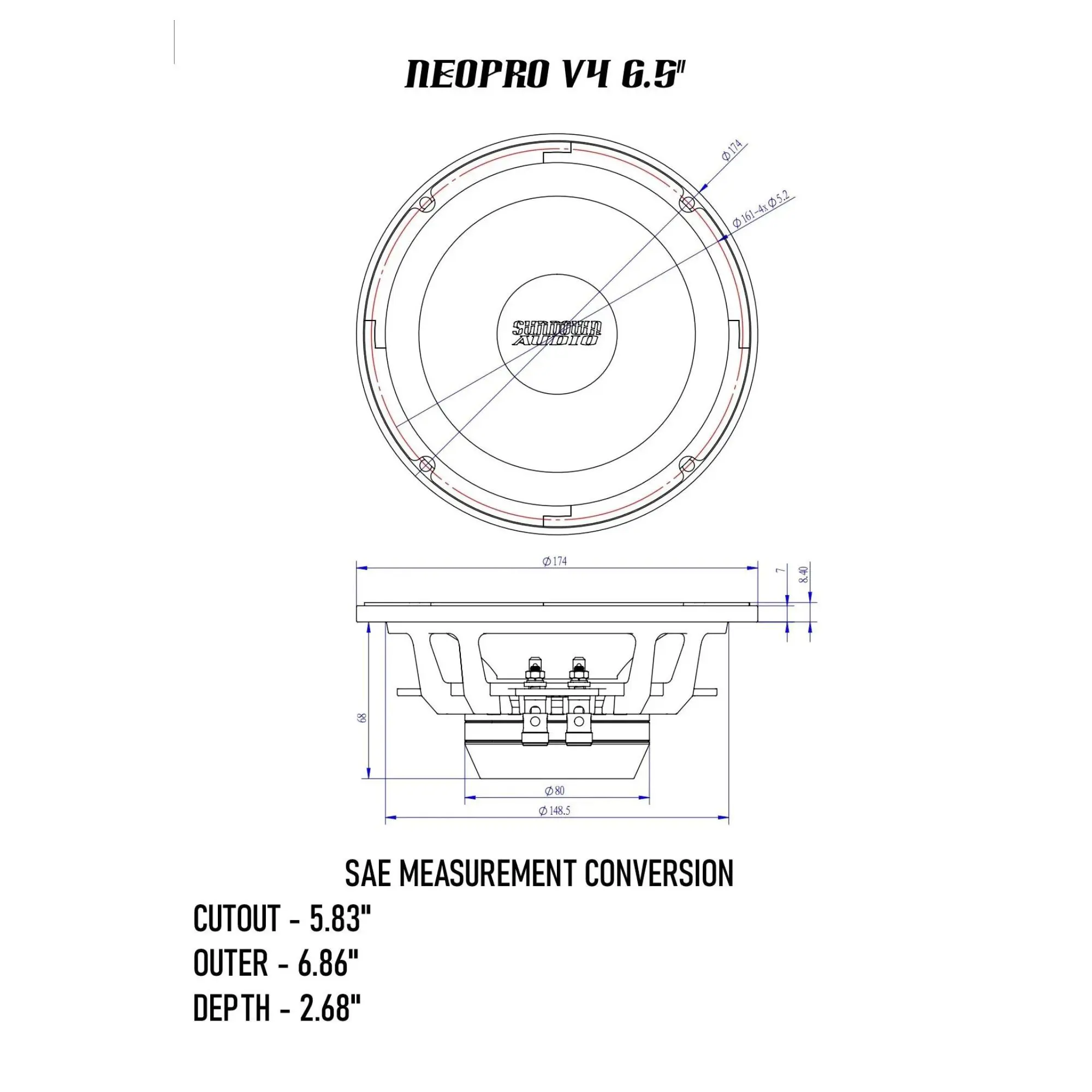

Dimensions
Cut-Out 5.83″
Frame Outer Diameter 6.86″
Mounting Depth 2.68″
Impedance
4 ohm
RMS Wattage
125 Watts
Sensitivity
94.7 dB
VAS (L)
3.002
Fs
143.345
Qms
5.148
Qes
0.458
Qts
0.42
Re
3.2
Le
Manufacturer Part Number
S-NEOPROV4654
Overall Diameter
6.86
Cutout Diameter
5.83
Mounting Depth
2.68
Magnet Material
Neo
Speaker Cone Material
Carbon Fiber
Speaker Surround Material
Cloth
Basket Material
Cast Alum.
