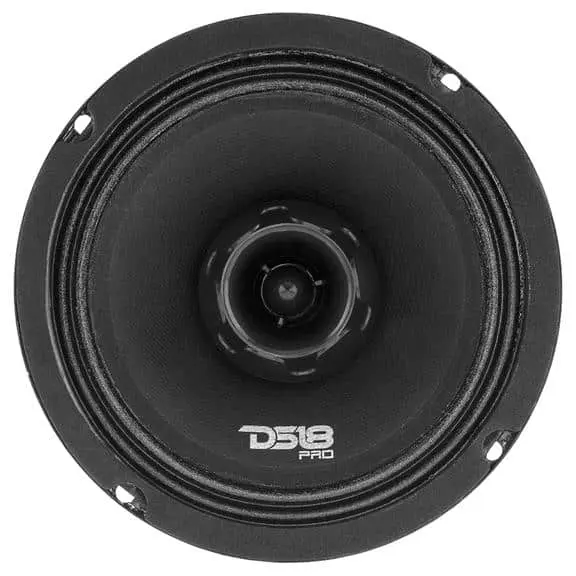

DS18 PRO-ZT6 PRO 6.5" 2-WAY MIDRANGE WITH BUILT IN BULLET TWEETER 225 RMS (Single)

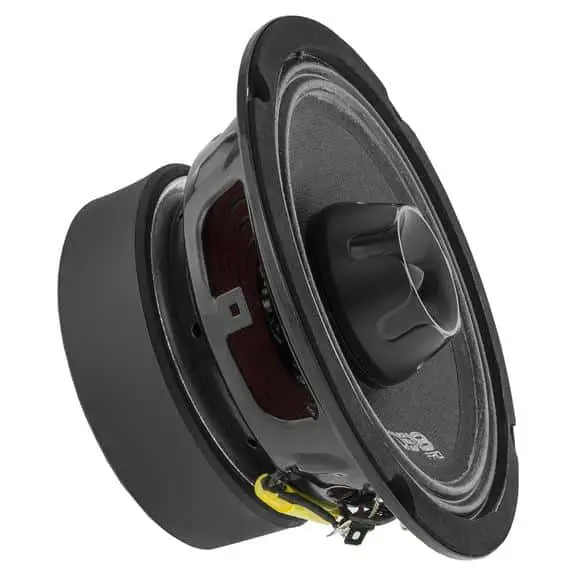

DS18 PRO-ZT6 PRO 6.5" 2-WAY MIDRANGE WITH BUILT IN BULLET TWEETER 225 RMS (Single) - Image 2

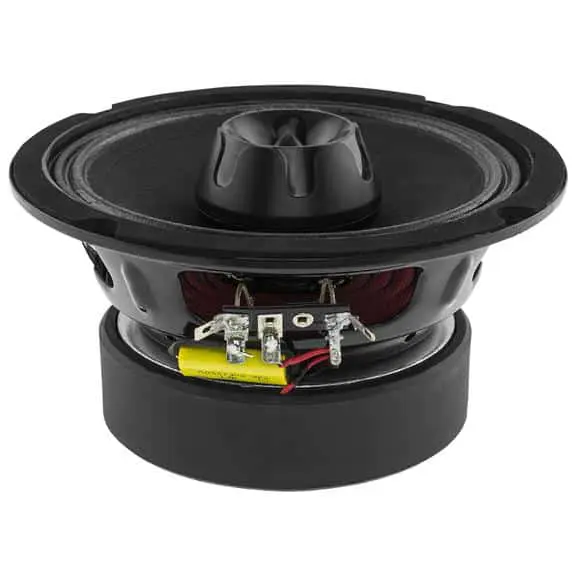

DS18 PRO-ZT6 PRO 6.5" 2-WAY MIDRANGE WITH BUILT IN BULLET TWEETER 225 RMS (Single) - Image 3

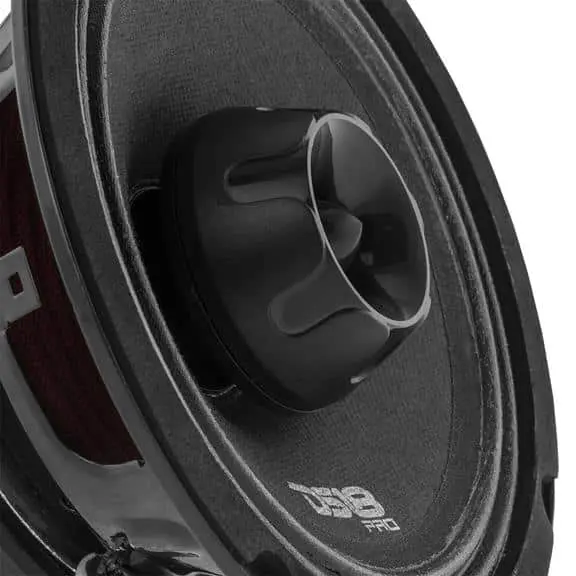

DS18 PRO-ZT6 PRO 6.5" 2-WAY MIDRANGE WITH BUILT IN BULLET TWEETER 225 RMS (Single) - Image 4

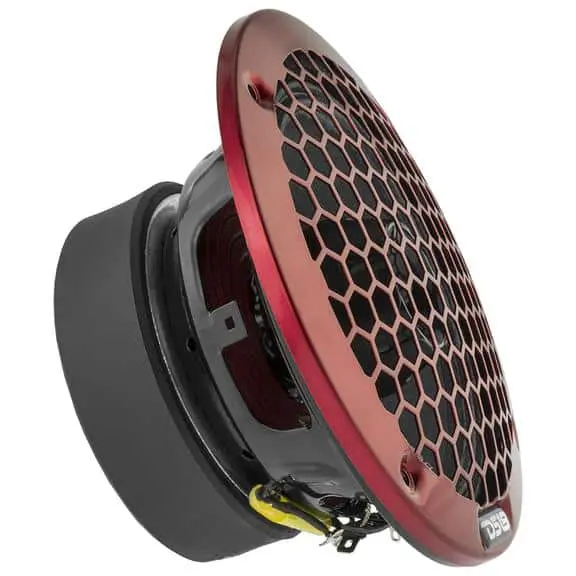

DS18 PRO-ZT6 PRO 6.5" 2-WAY MIDRANGE WITH BUILT IN BULLET TWEETER 225 RMS (Single) - Image 5

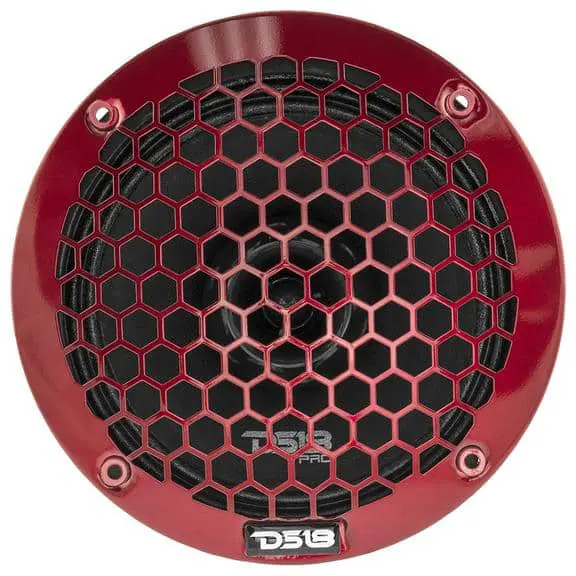

DS18 PRO-ZT6 PRO 6.5" 2-WAY MIDRANGE WITH BUILT IN BULLET TWEETER 225 RMS (Single) - Image 6

DS18 PRO-ZT6 PRO 6.5″ 2-WAY MIDRANGE WITH BUILT IN BULLET TWEETER 225 RMS (Single)

SKU: DS-SP-DS18-PRO-ZT6 Categories: ,

$67.96

/ Each

Nominal Diameter: 6.5″ (1651.1mm) Nominal Impedance: 4 ohms RMS Power Handing: 225 Watts MAX Power Handing: 450 Watts Sensitivity (1w/1m): 96dB Frequnecy Response: 65Hz – 22KHz Recommended Hi Pass Crossover 120Hz Midrange   Voice Coil Diameter: 1.5″ (38.1mm) Voice Coil Former Material: Kapton  Winding Material: CCAW Basket Material: Steel Magnet Weight: 27 oz Tweeter   Voice Coil Diameter: 1″ Voice Coil Material: Kapton  Winding Material: CCAW Diaphragm Material: Aluminum Alloy  Magnet Weight: 0.44 oz Magnet Material: Neodymium Thiele & Small Parameters   Equivalent Volume / Vas 2.917 LTR Excursion / Xmax 1.6mm Free Air Resonance / Fs 150Hz Mechanical Factor / Qms 3.906 Electrical Factor / Qes 0.747 Total Factor / Qts 0.701 DC Resistance / Re 3.2 Measurements   Overall Diameter: 178mm (7″) Front Mount Baffle Cutout: 144mm (5.67″) Mounting Depth: 77mm (3.03″) Overall Depth: 97mm (3.81)
