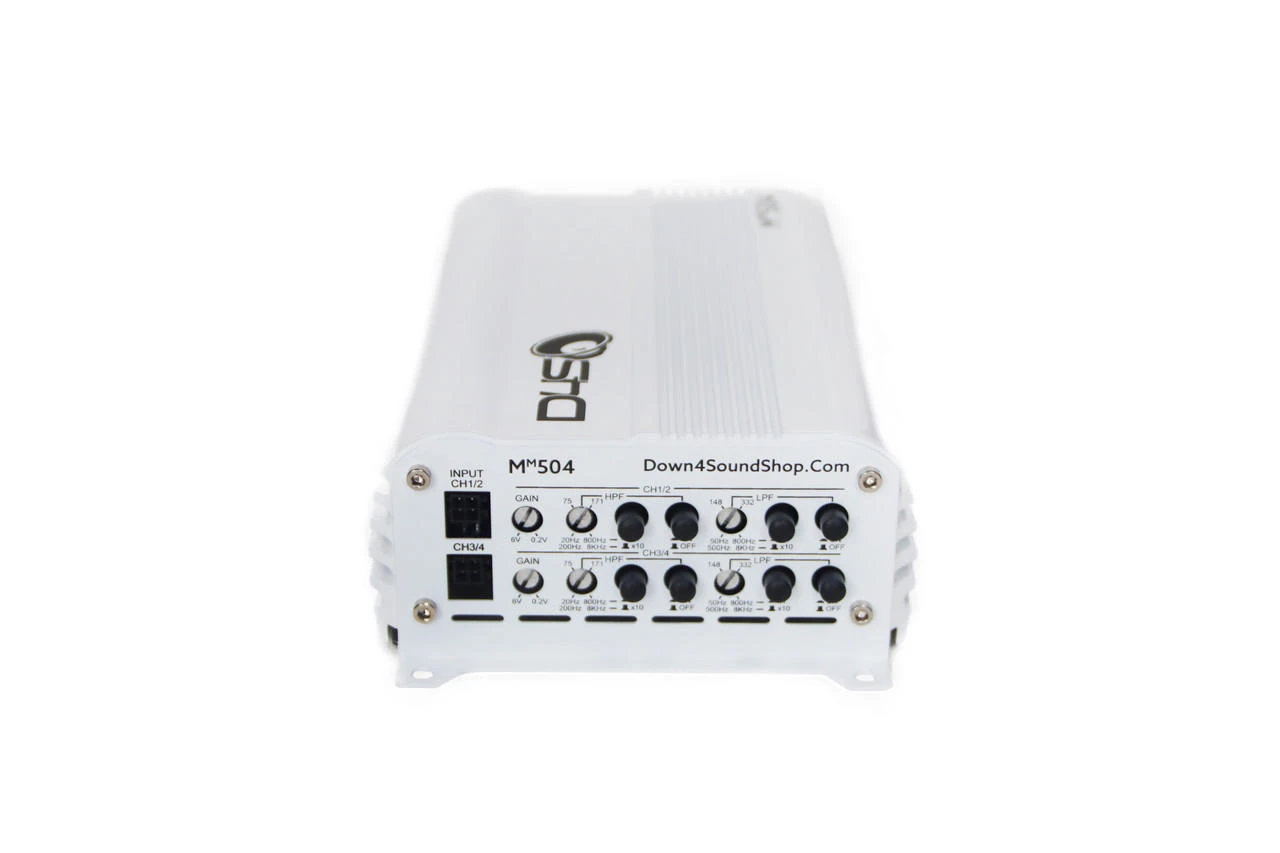

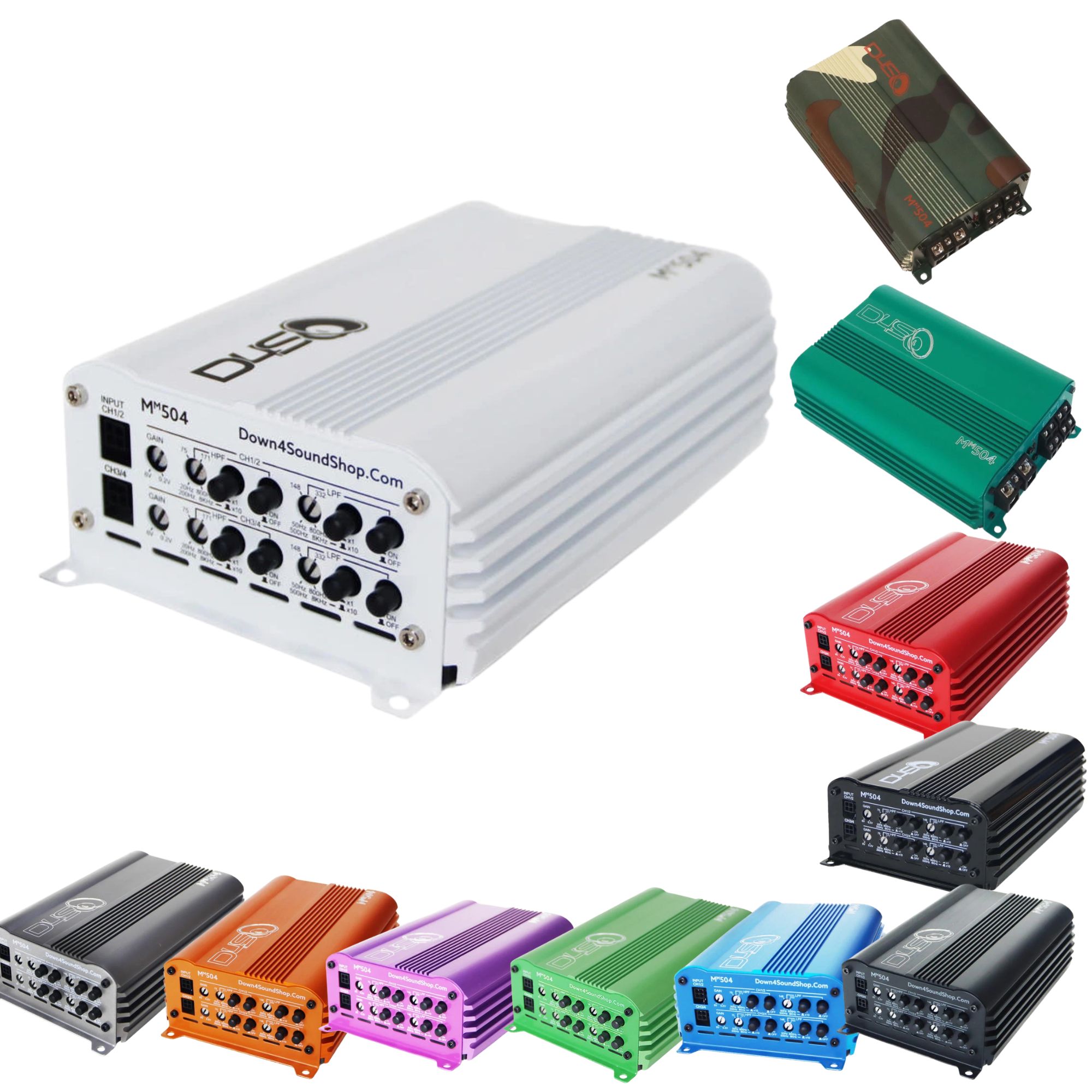

Introducing the DOWN4SOUND MM504 (MINI MAXX) – a sleek and potent 300W RMS 4-Channel Car Audio Amplifier. This elegantly designed compact amplifier is engineered to deliver superior audio performance in a small footprint, making it a perfect choice for car audio enthusiasts who value quality and power in a space-efficient design.
Key Features:
- Full Range Class D 4 Channel Amplifier, delivering high-quality sound in a sophisticated gloss white design.
- Stable performance in 2ohm stereo or 4ohm bridged configurations, adaptable for diverse audio setups.
- High-speed MOSFET power supply for consistent and reliable power delivery.
- Variable high pass and low pass filters for detailed sound customization.
- Crossover multiply x10 feature, enabling extensive audio tuning possibilities.
- 4 WAY PROTECTION CIRCUITS (Thermal, High & Low Voltage, Speaker Short, and DC) for increased safety and durability.
Technical Specifications:
- Rated Power Output:
- RMS power, 4ohms: 50W x 4
- RMS power, 2ohms: 80W x 4
- RMS power, 4ohms Bridged: 160W x 2
- Frequency Response: 10Hz – 23.7KHz
- High Pass Filter: 20Hz – 800Hz
- High Pass Filter Multiply: x1, x10 (200Hz – 8KHz)
- Low Pass Filter: 50Hz – 800Hz
- Low Pass Filter Multiply: x1, x10 (500Hz – 8KHz)
- Input sensitivity: 6V – 0.2V
- Signal to Noise Ratio: >88dB
- T.H.D @ 4ohm: less than 0.1%
- Working voltage: 9V – 15.5V
- Fuse rating: 25A
- Dimensions:
- Length: 6.69 inches
- Width x Height: 4.87 x 2.13 inches
The DOWN4SOUND MM504 (MINI MAXX) is a symbol of the continuous evolution in car audio technology.
