Upgrade the three main charging-system connections to reduce resistance and support a more stable electrical system.
Improve the current path between the alternator, battery and chassis.
A smart foundation for upgraded amplifiers and charging systems.
Help the electrical system respond when music gets loud.
Three cables. One stronger foundation.

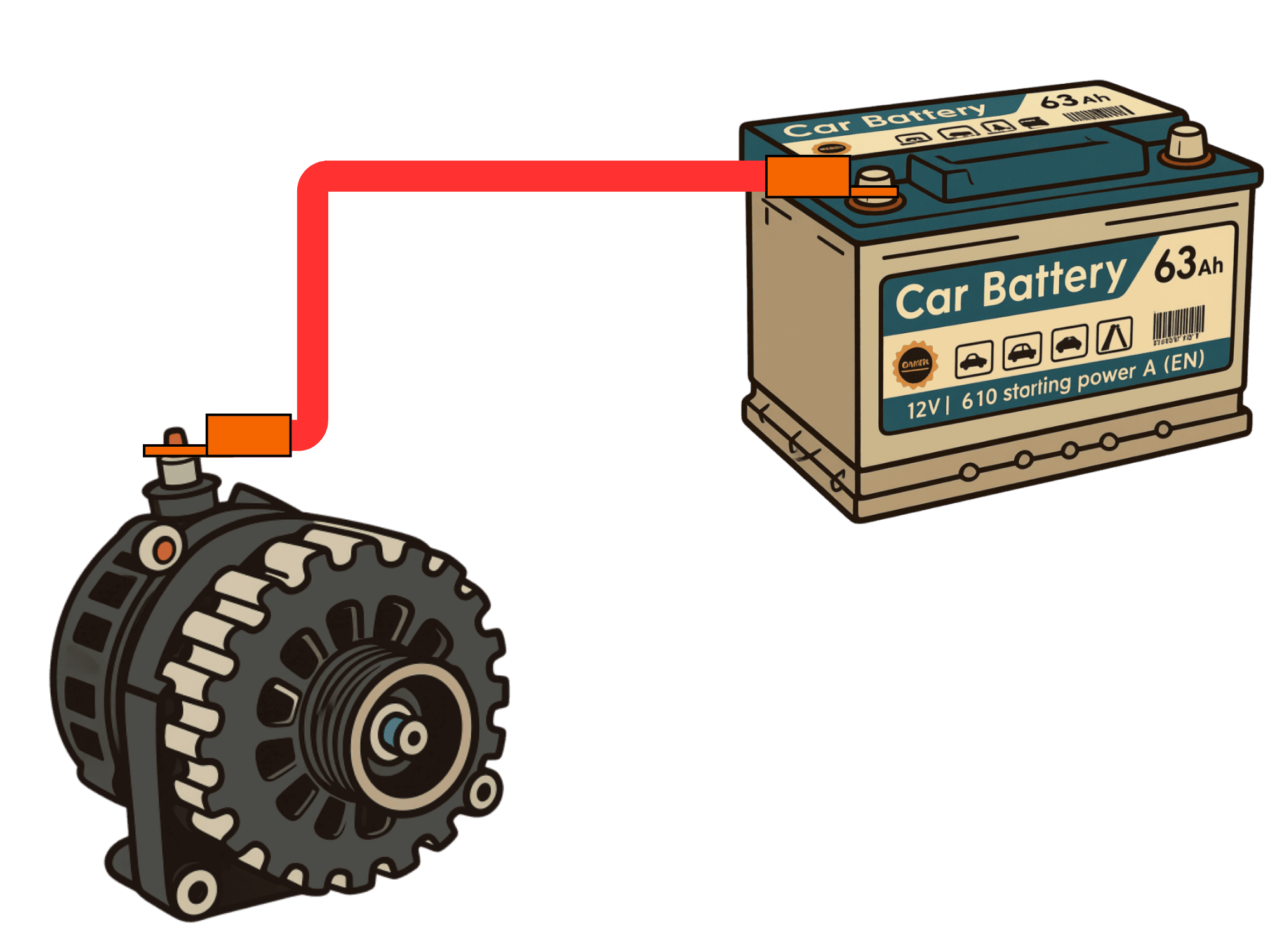

A larger, more stable alternator output to ensure proper battery charging current flow.

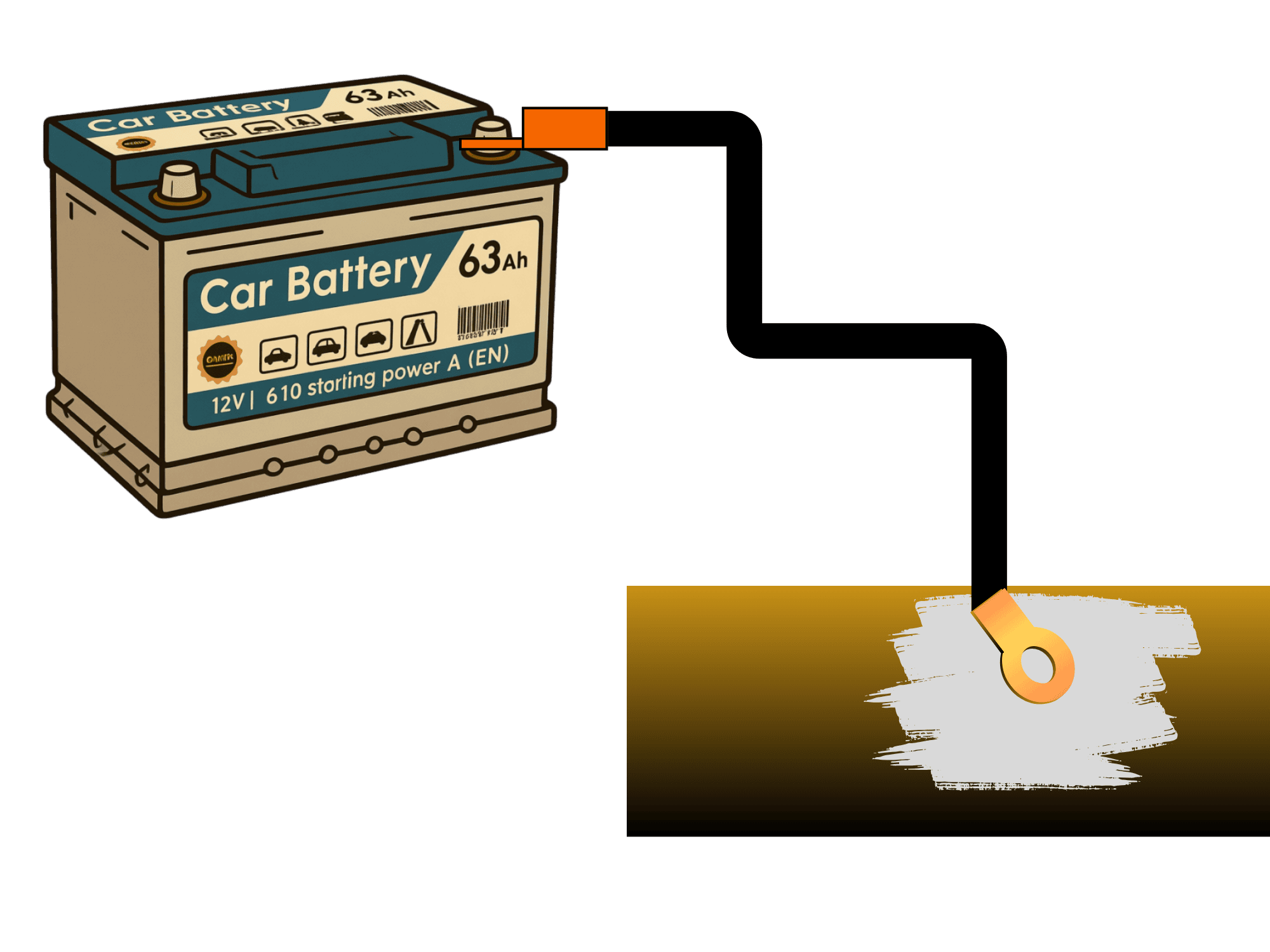

Part 1 of completing the full circuit path. This cable provides correct current flow from the battery.

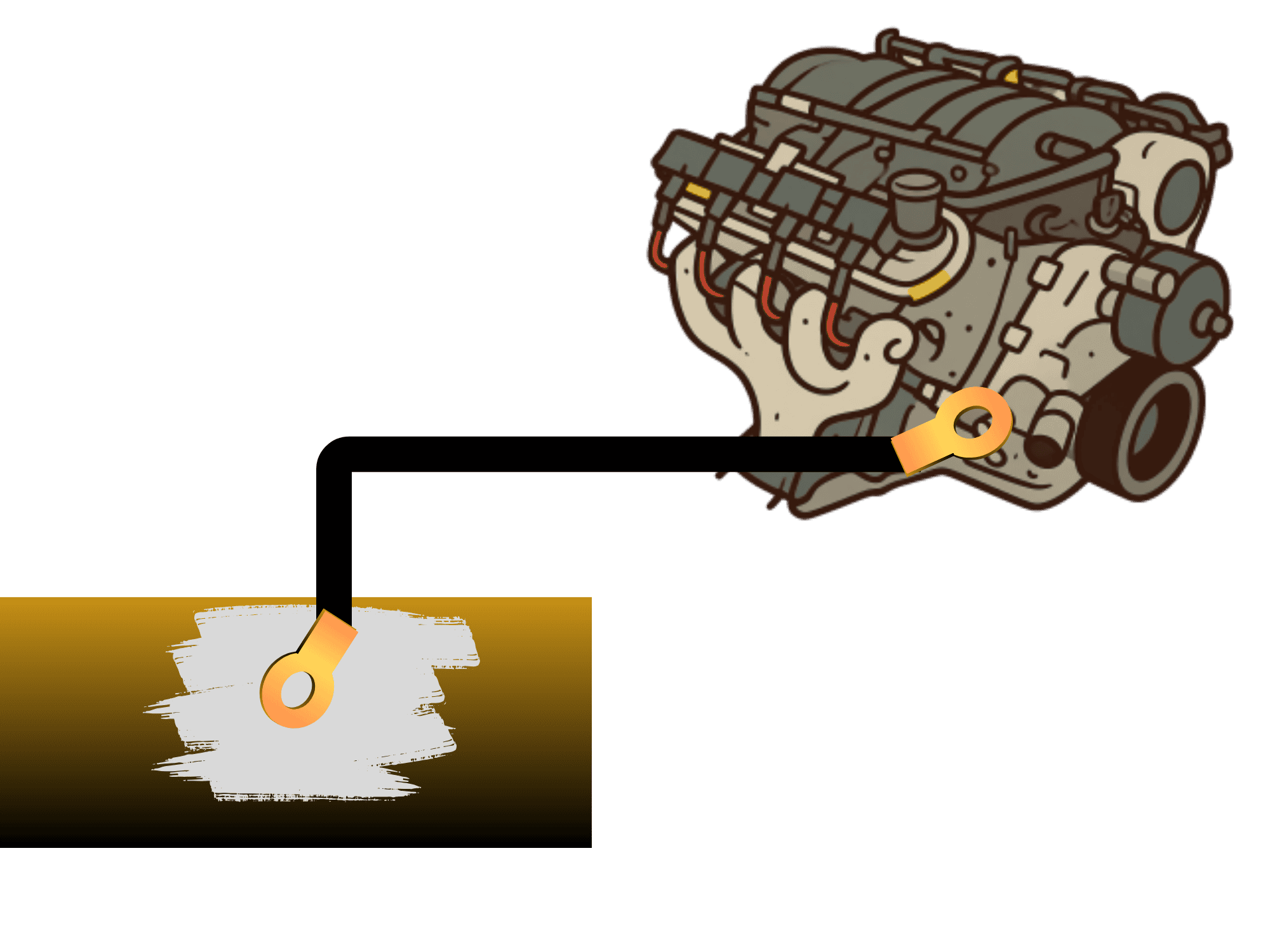

Part 2 of the complete circuit. A strong ground ensures the alternator can output at full capacity.
Good for moderate electrical upgrades and smaller amplifier systems.
More conductor area for higher-current builds and future expansion.
OFC carries more current for its size and is more resistant to corrosion. CCA is the value-focused option. Choose gauge with conductor material in mind.
Disconnect the battery, protect positive cable where required and keep wiring away from heat, sharp edges and moving parts. Professional installation is recommended if you are unsure.
A Big 3 upgrade adds larger power and ground cables to the three main charging-system connections: alternator positive to battery positive, battery negative to chassis, and engine block to chassis. This creates a lower-resistance current path for the vehicle’s electrical system.
Usually, no. The upgraded cables are generally installed alongside the factory wiring rather than replacing it. Retaining the original connections provides an additional current path and avoids removing wiring used by the vehicle manufacturer.
No. A Big 3 upgrade does not increase the amount of current your alternator can produce. It improves the wiring path that carries current between the alternator, battery, engine and chassis.
A 4-gauge kit can be suitable for moderate electrical upgrades and smaller amplifier systems. Choose 1/0-gauge for higher-current systems, larger amplifiers or additional room for future upgrades. Your system demand, cable material and installation length should all be considered.
OFC is oxygen-free copper and carries more current for its size with lower resistance. CCA uses copper-clad aluminum and provides a more affordable option, but typically requires a larger cable size to carry the same current. Consider both the conductor material and wire gauge when comparing kits.
Not necessarily. Factory wiring may be sufficient for a smaller audio system, but a Big 3 upgrade can provide a stronger electrical foundation for systems with larger amplifiers or increased current demand.
The installation requires working around the battery, alternator and engine compartment. Disconnect the battery, follow the kit and vehicle instructions, protect the positive cable as required, and keep every cable away from heat, sharp edges and moving parts. Professional installation is recommended if you are unsure.
