700 x 2 @ 4 ohms RMS
325 x 4 @ 2 ohms RMS
200 x 4 @ 4 ohms RMS bridged
4-channel full-range amplifier: 10Hz – 25 kHz

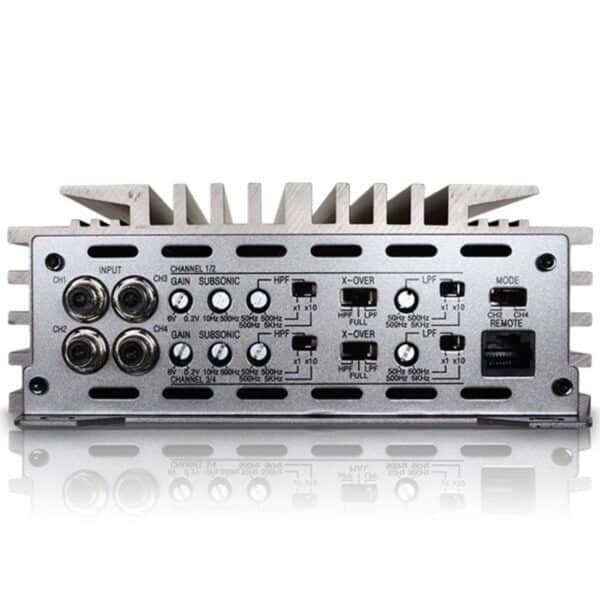

Variable 12dB high & low pass filters: 50HZ – 500HZ
Variable 12dB subsonic filter: 10HZ – 500HZ
X1/X10 crossover multiplier

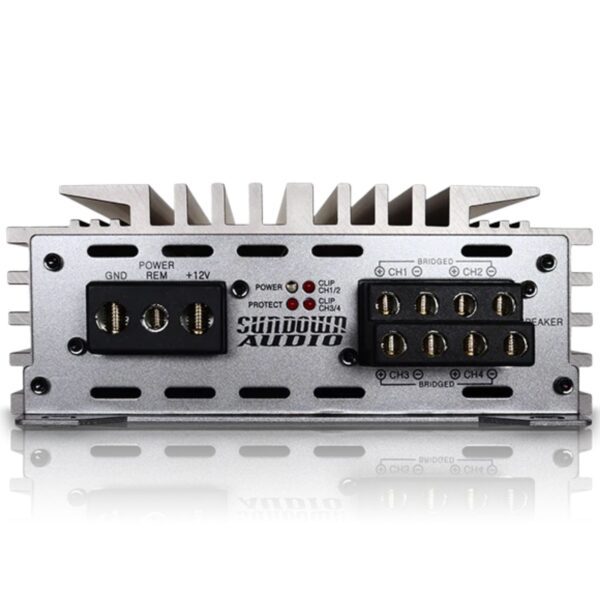

Power, clipping & protection indicators included
Thermal, voltage, speaker short, and dc-offset protection circuitry
Optional wired remote control displays voltage, temperature, and clipping display
Producing optimum power at realistic voltages (the 12s, rather than needing 14+ volts), the SALT – Sundown Audio Low-Voltage Technology – is Sundown’s answer! SALT amplifiers represent the pinnacle of Korean Class-D amplifier technology. Whether you are a world-class SPL competitor or a hardcore sound quality fan, the SALT series will be right at home in your system.
Specifications
Input Sensitivity : 6V – 0.2V

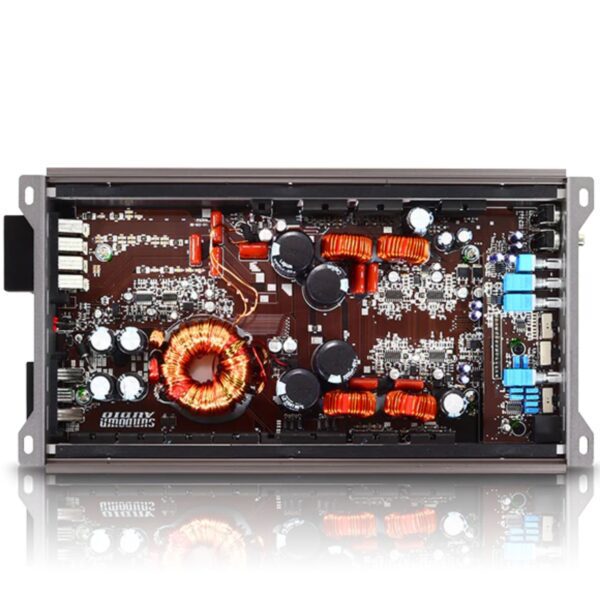

Double Sided Through Hole Epoxy PCB
Efficiency : 75% 4OHM, at 100HZ
Signal / Noise Ratio : 105DB <
Damping Factor : 400 <
Tested Voltage & THD : 12.8V & Less Than 1% THD
Operation Voltage : DC 9V – 15.5V Power Input
Recommended Fuse : 120 Amps
Dimensions : 11.82” L x 6.85” W x 2.66” H4-channel full-range amplifier: 10Hz – 25 kHz
