Impedance
4
RMS Wattage
250 Watts
Max Wattage
500 Watts
Sensitivity
92 dB
VAS (L)
22.76
X-Max (mm)
6
Fs
49
Qms
6.25
Qes
0.59
Qts
0.54
Re
3.7
Le
0.08

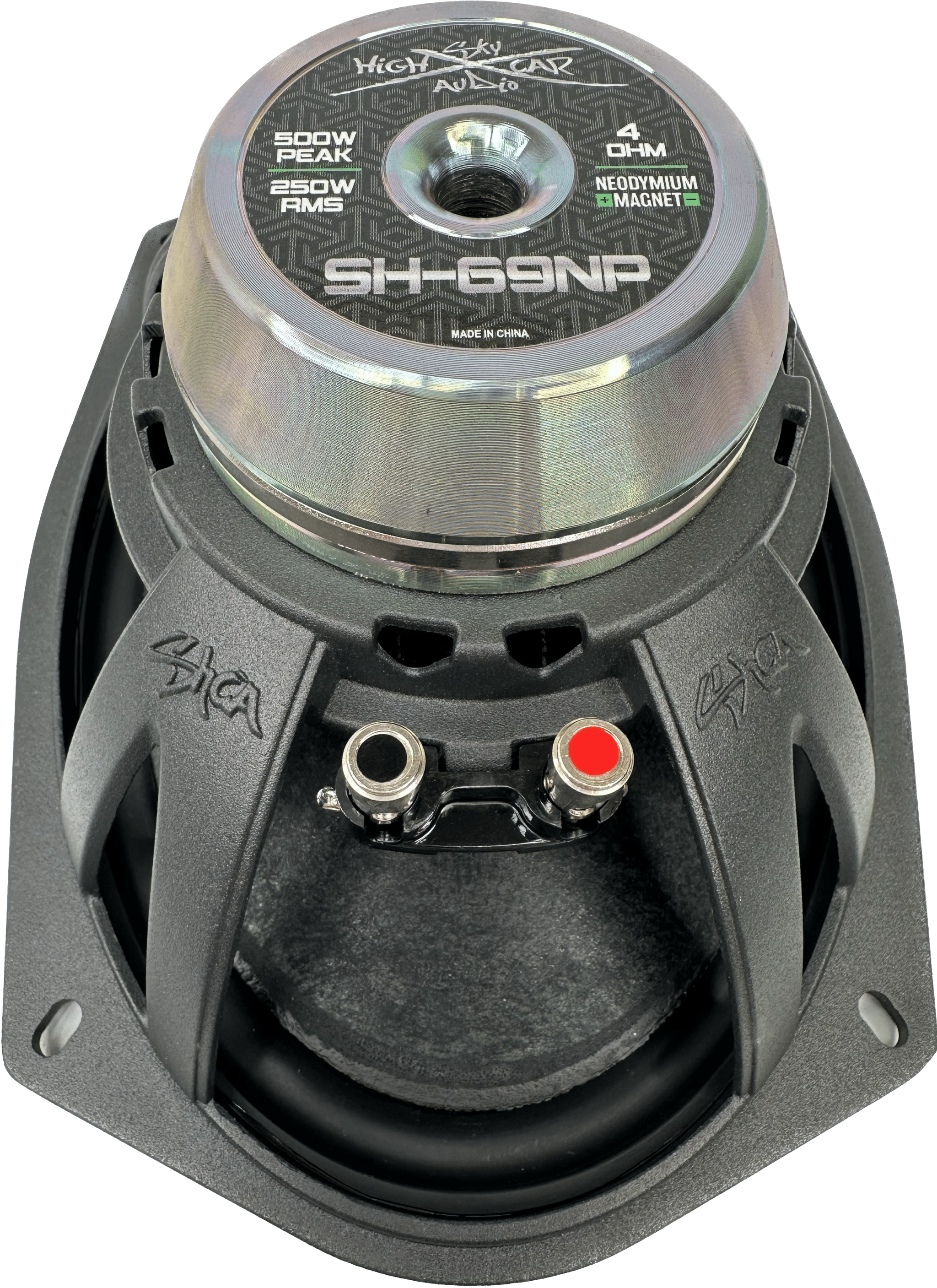

Manufacturer Part Number
SHCA-SH-69NP
Mounting Depth
3.42
Magnet Material
Neo

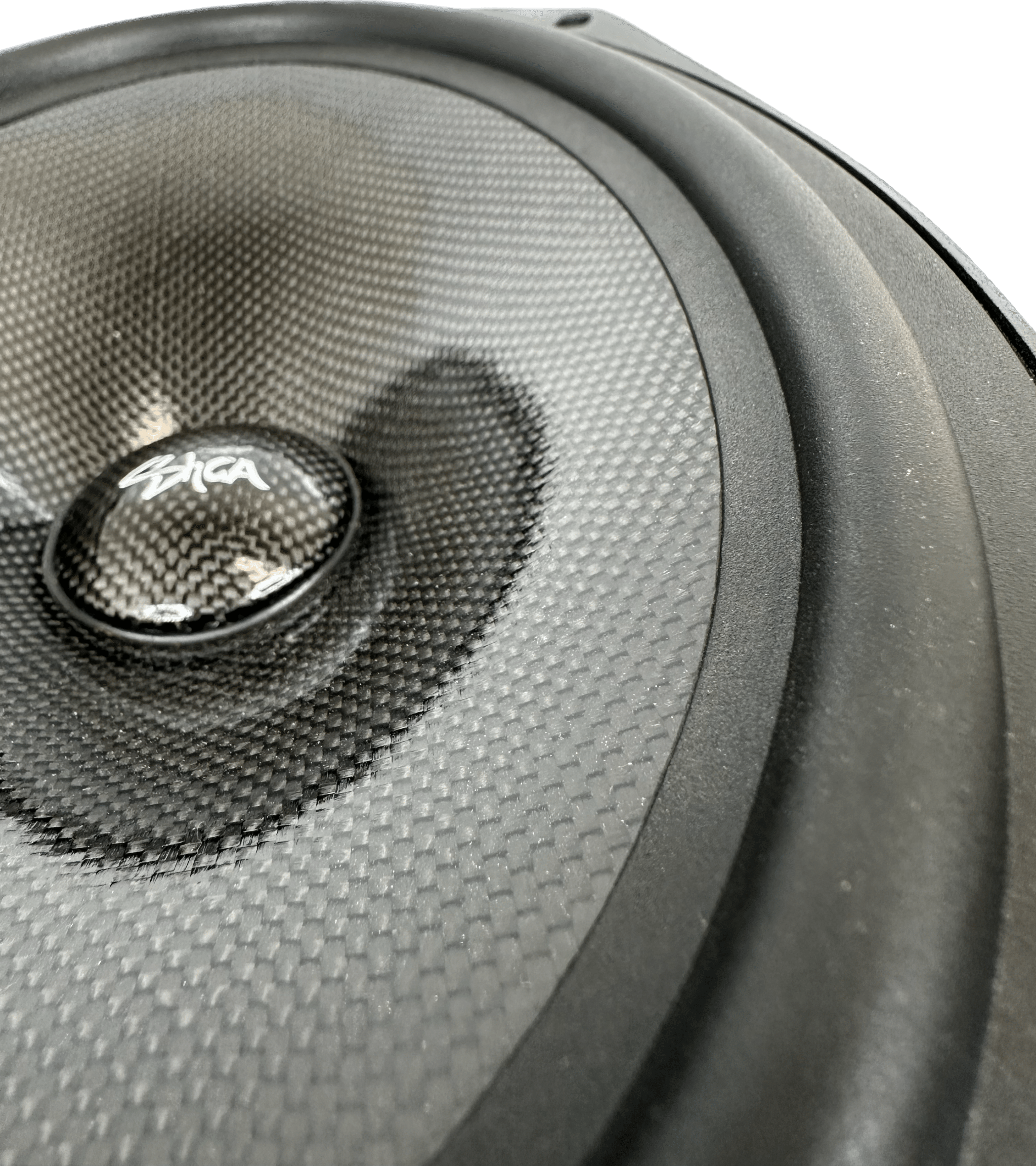

Speaker Cone Material
Carbon Fiber
Speaker Surround Material
Rubber
Basket Material
Cast Aluminum
